Installation Manual
Flat Screen TV Mounting Kit
Model: WM-150

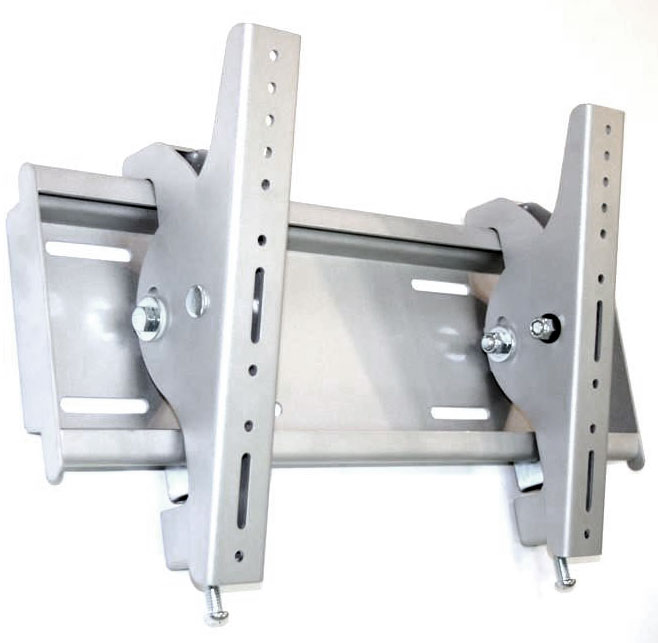

Acrobak WM-150 is universal wall-mount bracket that is designed to fit flat-panel TV from 27" to 40". It offers the security and stability of a fixed wall mount, plus tilting adjustment features.
Heavy-gauge steel in a powder-coated finish provides a quality, high-tech look
Security and Stability of Mounting Kit
Double-stud mounting design and locking security bars for secure the flat screen TV firmly and vertrically in place
Tilt Adjustment
For precise tilting of display up to 15 ° and optimum viewing while seated without annoying glare

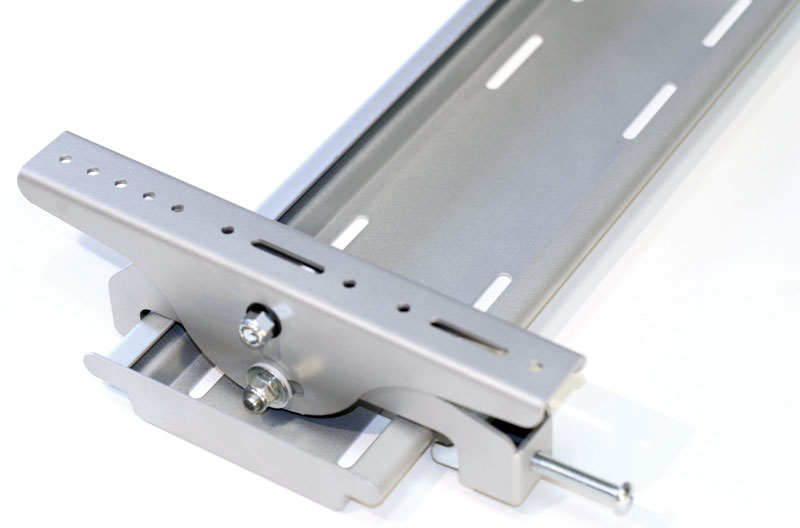

Sliding lateral on-wall adjustment
Horizontal post-installation adjustment left or right upto (need exactly number)"
VESA Standard Compatible
Fits all VESA standard flat screen TVs from 26 " to 40", and weight upto 60 kg (132 lbs)
Silver Color
Product Type Specifications
Flat Screen Size Range: 26” ~ 40 ”
Max Load: up to 60 kg ( 132 lbs)
Tilt Range: down up to 15°

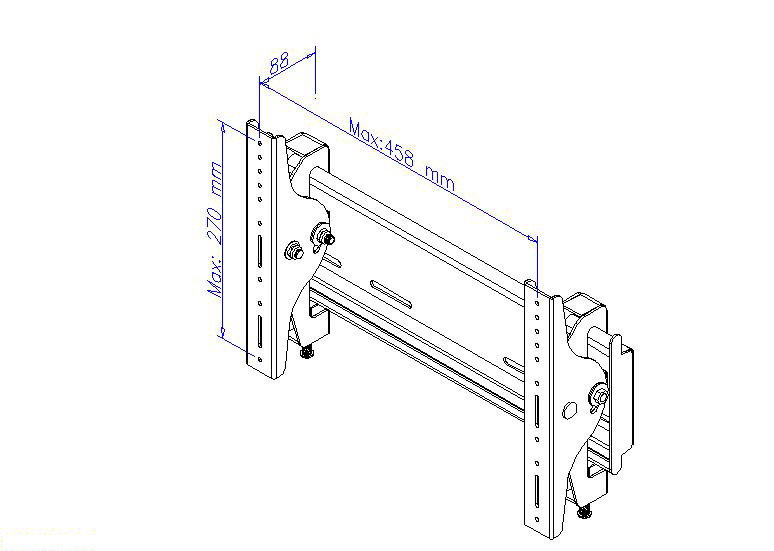

Slim designed 9 cm (3.54") off the wall mounting profile
VESA Mounting Bracket: Fits most of TVs and all VESA standard 26" to 40" TVs
Product Specifications
| • | Net Weight: | |
| • | Product Width: | 19.84” / 50.4 cm |
| • | Product Depth: | 3.46” / 8.8 cm |
| • | Product Height: | 11.81” / 30.0 cm |
Package Specifications
| • | Package Weight: | 15.2 lbs / 6.9 kgs |
| • | Package Width: | 20.27” / 51.5 cm |
| • | Package Deptht: | 7.71” / 19.6 cm |
| • | Package Height: | 5.28” / 13.4 cm |
Package Contents:
| • | Wall Plate | x 1 |

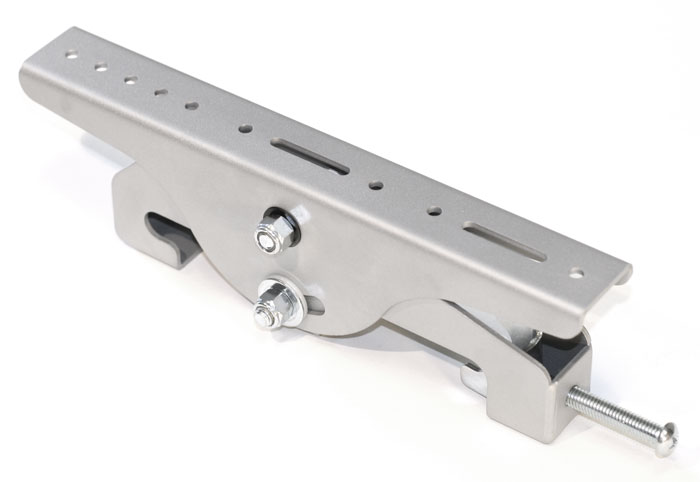

| • | Vertical Adjustment Bar | x 2 |
| • | M~ Screws | |
| • | Washers | |
| • | Spacers | |
| • | Installation Manual | x 1 |
