installation Manual
LCD TV/Monitor Mounting Kit
Model: WM-100

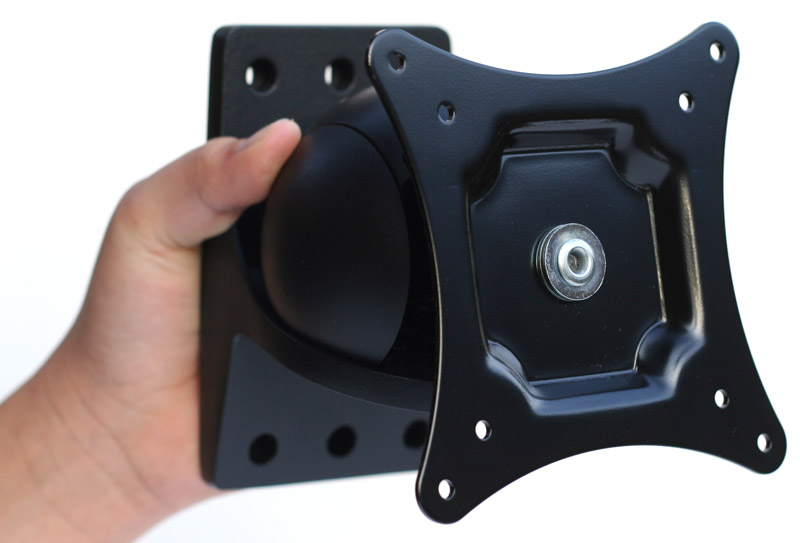

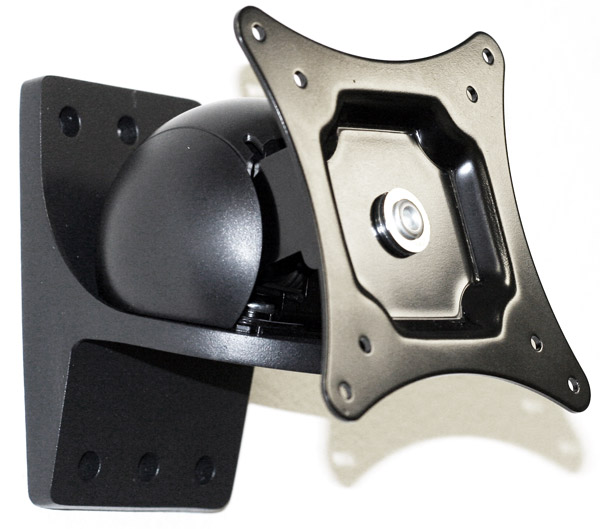

Acrobak WM-100 is revolutionary and patented (Effortless Multi-Axis™) 3-axis LCD mounting kit that provides just right amount of forces to secure the LCD TVs/monitors and help users to adjust the positioning by one hand without any tool.
Steel Construction
Heavy-gauge steel in a powder-coated finish provides a sleek, high-tech look

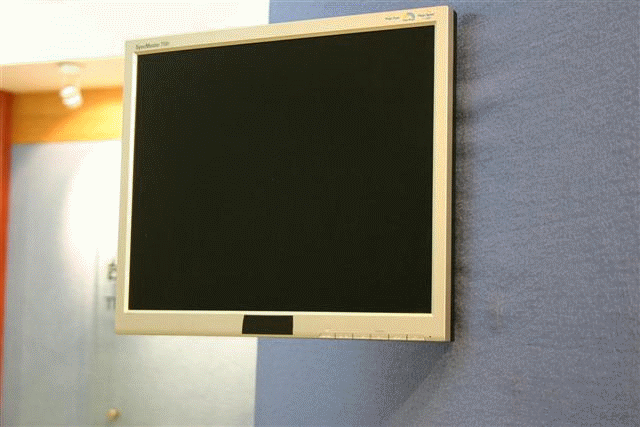

Secure LCD TV/monitor In Place
Secure the LCD TV/monitor firmly and vertrically
Effortless Multi- Axis™ Adjustment
Effortless Multi-Axis™ technology offers effortless Multi-Axis adjustment tilt, pan, and portrait-landscape positioning with your fingertip without any tools
VESA Standard Compatible
Fit all VESA standard LCD TVs and monitors
Black Color
Product Type Specifications
LCD TV/monitors Size Range: 10” ~ 20”
LCD TV/monitor (without stand) Weight Capacity: 3.5 kg ~ 8.5kg (7.7 lbs ~ 18.7 lbs)
Tilt Range: up 15° / down 20°
Pivot: 360°
Pan Range: right 45° / left 45°
VESA Standard: 75mm – 100mm
Product Specifications
| • | Net Weight: | 1.54 lbs / 0.7 kg |
| • | Product Width: | 4.57” / 11.6 cm |
| • | Product Depth: | 5.08” / 12.9 cm |
| • | Product Height: | 4.96” / 12.6 cm |
Package Specifications
| • | Package Weight: | |
| • | Package Width: | 6.8” / 17.5 cm |
| • | Package Deptht: | 5.8” / 14.8 cm |
| • | Package Height: | 6.3” / 16.00 cm |
Package Contents:
| • | Wallmount Unit | x 1 |
| • | M~ Tapping Screw | x 2 |
| • | M~ Tapping Screw | x 4 |
| • | Nylon Ancor | x 4 |
| • | M4x10mm thumb screw | x 4 |
| • | Scale Sticker | x 1 |
| • | Installation Menual | x 1 |
