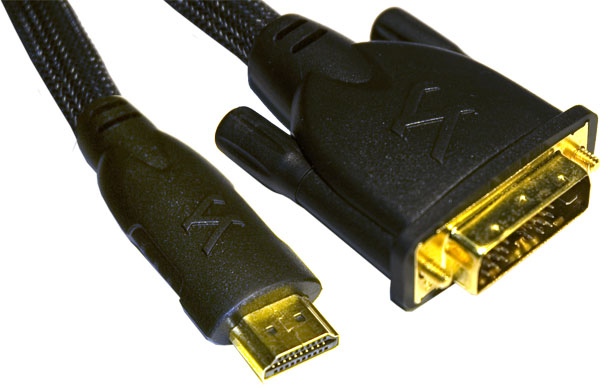

HDMI to DVI Cable
Model: AVC-15D
AVC-15D is HDMI interface to DVI-D single-link video cable that brings you high-definition picture quality. Now you can connect HDMI-equipped devices such as DVD players, set-top boxes, AV receivers and HDTVs with one cable that helps utilize and optimize both different formats
Features
| • | 24K gold-plate connector without any digital signal transfer loss |
| • | Silver contacts resist corrosion to provide optimum signal transfer |
| • | High-density triple-shielding for maximum rejection of RFI and EMI |
| • | Protects against wire damage for consistently high-quality audio video with integrated strain relief |
| • | Support HDMI, DVI-D, or HDCP-enabled HDTV (HDMI 1.3, HDCP 1.1 and DVI 1.0 compliant) |
| • | Supports high resolution input/output: |
| PC: VGA, SVGA, XGA, SXGA and UXGA (1600x1200) HDTV: 480i, 480p, 720p, 1080i and 1080p |
Specifications
| • | One HDMI ports ( type A connector) |
| • | One DVI-D ports |
| • | Support all HDTV formats (1080p, 1080i, 720p, 480p and 480i) at rates up to 120Hz and WQSXGA, Video pixel rate from 25 MHz to 340 MHz |
| • | Full support for high-resolution PC video formats-including 2560 X 1400 |
| • | Supports new xvYCC color space (1.8 times as many colors as existing HDTV signals) |
| • | Ability for PC sources to use their native RGB color-space while retaining the option to support the YCbCr CE color-space |
| • | Supports future low-voltage (i.e., AC-coupled) sources, such as those based on PCI Express I/O technology |
| • | CL-3 Rated for in-wall use |
| • | RoHS Compliant |
