HDMI Equalizer
Model: AVS-492
AVS-492 is a high performance cable equalizer allows HDMI interface cable or HDMI-to-DVI cable runs up to 50meters. It corrects digital error and automatically provides equalization up to 40dB to compensate for cable transmission loss, it will eliminate digital noise (sparkles) to ensure you to receive perfect HDTV picture and high quality digital audio sound after long cable transmission.
Features
| • | Extend cable runs up to 40 meters - 20 meters from the source to the equalizer plus 20 meters from the equalizer to the Hi-definition TV |
| • | Fully automatic equalization up to 40 dB at 825 MHz (1.65Gbps), no system control required |
| • | Maintains high HDMI single link video resolution up to UXGA (1080p). |
| • | Support HDMI, DVI-D, or HDCP-enabled HDTV (HDMI 1.3, HDCP 1.1 and DVI 1.0 compliant) |
| • | Signal Enhancement feature allows you to improve signal quality after long distance transmission |
| • | Can be powered directly from the cable. However, it's recommended to use external power adaptor for long cable application |
| • | HDCP compliant, HDMI is backward compatible with DV |
| • | Supports high resolution input/output: |
| PC: VGA, SVGA, XGA, SXGA and UXGA (1600x1200) HDTV: 480i, 480p, 720p, 1080i and 1080p |
|
| • | Plug and play, easy to install |
Specifications

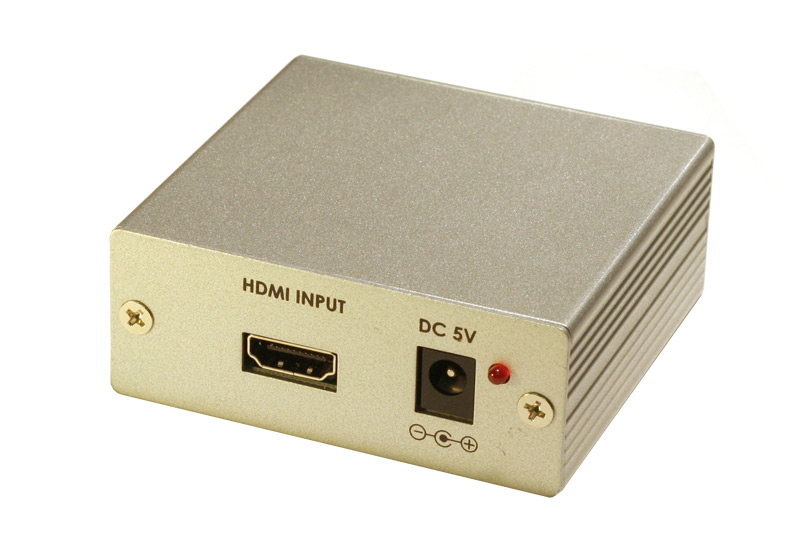

| • | One HDMI ports input ( type A connector) |

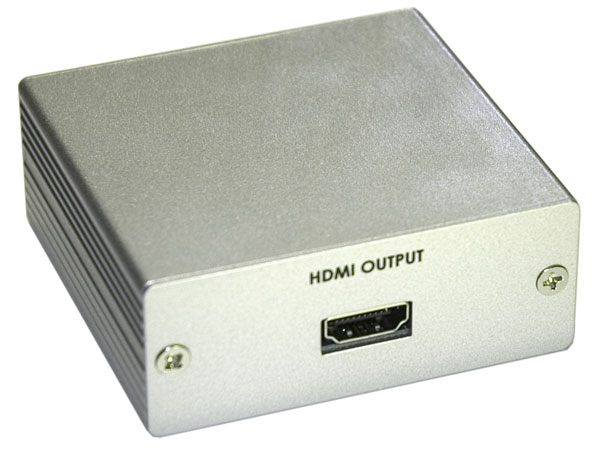

| • | One HDMI port output ( type A connector) |
| • | HDCP is compliant with HDCP 1.1 downward compatible to HDCP 1.0, HDCP pass throught |
| • | Support all HDTV formats (1080p, 1080i, 720p, 480p and 480i) at rates up to 120Hz and WQSXGA, Video pixel rate from 25 MHz to 340 MHz |
| • | Full support for high-resolution PC video formats-including 2560 X 1400 |
| • | Supports upto 8-channel digital audio (32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz.) |
| • | Supports lossless compressed digital audio formats Dolby TrueHD and DTS-HD Master Audio |
| • | 5V AC power adapter |
| • | Power: 5V center-positive |
| • | Gross weight: 0.85 kg |
| • | Product dimension: 72 mm x 76 mm x 30 mm |
Product Contents
| • | HDMI Equalizer AVS-492 | x 1 |
| • | 5V Power AC Adapter | x 1 |
| • | User Manual | x 1 |
