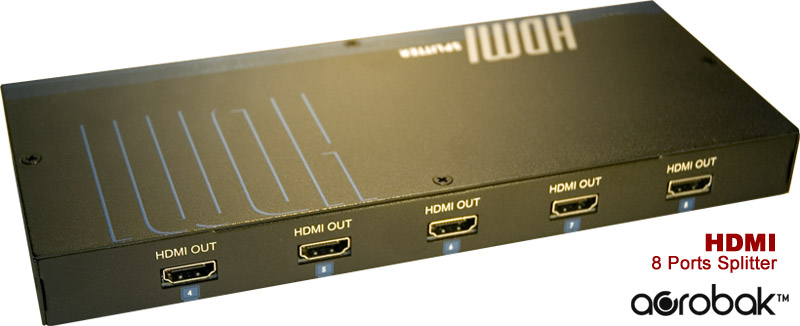

HDMI 8 Ports Splitter
Model: AVS-418
AVS-418 is a high performance HDMI distribution amplifier. It allows one HDMI source to connect up to 8 HDMI displays simultaneously.
Features
| • | One HDMI port input, 8 HDMI ports output |
| • | Built-in EDID simulator and HDCP keyset allows each output to work independently when connecting to a HDMI display |
| • | Each of the buffered output can run up to 15 Meters @1600x1200 |
| • | Support HDMI, DVI-D, or HDCP-enabled HDTV (HDMI 1.3, HDCP 1.1 and DVI 1.0 compliant) |
| • | Splits a HDMI source up to 8 outputs without signal loss |
| • | Signal Enhancement feature allows you to improve signal quality after long distance transmission |
| • | Supports DVI source and DVI display by using HDMI to/from DVI adaptor cable |
| • | Maximum resolution bandwidth 165MHz |
| • | Supports high resolution input/output: |
| PC: VGA, SVGA, XGA, SXGA and UXGA (1600x1200) HDTV: 480i, 480p, 720p, 1080i and 1080p |
|
| • | Easy to install |
Specifications
| • | One HDMI port input ( type A connector) |
| • | 8 HDMI ports output ( type A connector) |
| • | Support all HDTV formats (1080p, 1080i, 720p, 480p and 480i) at rates up to 120Hz and WQSXGA, Video pixel rate from 25 MHz to 340 MHz |
| • | Full support for high-resolution PC video formats-including 2560 X 1400 |
| • | Supports upto 8-channel digital audio (32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz.) |
| • | Supports lossless compressed digital audio formats Dolby TrueHD and DTS-HD Master Audio |
| • | Frequency bandwidth upto 1.65 Gbps |
| • | 5V AC power adapter |
| • | Gross weight: 0.85 kg |
| • | Product dimension: 240 mm x 103 mm x 24 mm |
Product Contents
| • | 8 ports Splitter Box AVS-418 | x 1 |
| • | 5V AC Power Adapter | x 1 |
| • | User's Manual | x 1 |
