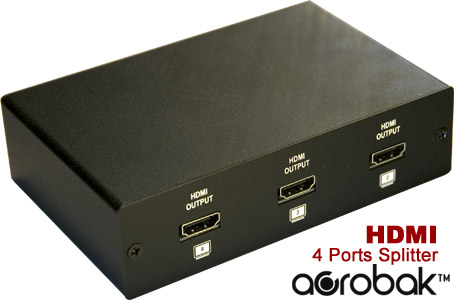

HDMI 4 Ports Splitter
Model: AVS-414
AVS-414 is a high performance HDMI 4 ports splitter. It allows one HDMI source to connect up to 4 HDMI displays simultaneously.
Features
| • | Splits one HDMI source up to 4 outputs without signal loss |
| • | Built-in EDID simulator and HDCP keyset allows each output to work independently when connecting to a HDMI display |
| • | Supports DVI source and DVI display by using HDMI to/from DVI adaptor cable |
| • | Support HDMI, DVI-D, or HDCP-enabled HDTV (HDMI 1.3, HDCP 1.1 and DVI 1.0 compliant) |
| • | Signal Enhancement feature allows you to improve signal quality after long distance transmission |
| • | Each of the buffered output can run up to 15 Meters @1600x1200. |
| • | Ideal for home theater integration and presentation |
| • | Supports high resolution input/output: |
| PC: VGA, SVGA, XGA, SXGA and UXGA (1600x1200) HDTV: 480i, 480p, 720p, 1080i and 1080p |
|
| • | Easy to install |
Specifications
| • | Input one HDMI port ( type A connector) |
| • | output 4 HDMI ports ( type A connector) |
| • | Support all HDTV formats (1080p, 1080i, 720p, 480p and 480i) at rates up to 120Hz and WQSXGA, Video pixel rate from 25 MHz to 340 MHz |
| • | Full support for high-resolution PC video formats-including 2560 X 1400 |
| • | Supports upto 8-channel digital audio (32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz.) |
| • | Supports lossless compressed digital audio formats Dolby TrueHD and DTS-HD Master Audio |
| • | 5V AC power adapter |
| • | Gross weight: 0.55 kg |
| • | Product dimension: 141 mm x 102 mm x 38 mm |
Product Contents
| • | 4 Ports Splitter AVS-414 | x 1 |
| • | 5V AC Power Adapter | x 1 |
| • | User Manual | x 1 |
