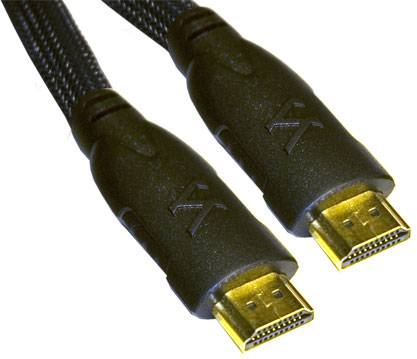

HDMI Interface Cable
Model: AVC-15H
HDMI cable AVC-15H deliver HDMI's crystal-clear, all-digital, high-definition video and multi-channel audio. Now you can connect HDMI-equipped devices such as DVD players, set-top boxes, AV receivers and HDTVs with a (acrobak part no.) cable that deliver clear and crystal Hi-definition TV picture, and high quality digital audio sound.
Features
| • | 24K gold-plate connector without any digital signal transfer loss |
| • | Silver contacts resist corrosion to provide optimum signal transfer |
| • | Supports multiple audio formats, from stereo to multi-channel sound |
| • | High-density shielding for maximum rejection of RFI and EMI |
| • | Protects against wire damage for consistently high-quality audio video with integrated strain relief |
| • | Support HDMI, DVI-D, or HDCP-enabled HDTV (HDMI 1.3, HDCP 1.1 and DVI 1.0 compliant) |
| • | Supports high resolution input/output: |
| PC: VGA, SVGA, XGA, SXGA and UXGA (1600x1200) HDTV: 480i, 480p, 720p, 1080i and 1080p |
Specifications
| • | Two HDMI ports ( type A connector) |
| • | Support all HDTV formats (1080p, 1080i, 720p, 480p and 480i) at rates up to 120Hz and WQSXGA, Video pixel rate from 25 MHz to 340 MHz |
| • | Full support for high-resolution PC video formats-including 2560 X 1400 |
| • | Supports upto 8-channel digital audio (32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz.) on same cable |
| • | Full support for high-resolution PC video formats-including 2560 X 1400 |
| • | Supports lossless compressed digital audio formats Dolby TrueHD and DTS-HD Master Audio |
| • | Supports future low-voltage (i.e., AC-coupled) sources, such as those based on PCI Express I/O technology |
| • | CL-3 Rated for in-wall use |
| • | RoHS Compliant |
